MRTG (Multi Router Traffic Grapher) Server




Introductions:

Our discussion here is all about an Opensource network monitoring software, no other than MRTG (Multi Router Traffic Grapher) which is an application that allows us to observe the traffic of a network. It generates html pages with graphs which are refreshed according to our network’s current state. Its source is written in Perl and C which means that it can be installed in every Operating System we like. We will also need SNMP daemon (Simple Network Management Protocol) which gives us information for a network. The following installation was accomplished under Linux and specifically CentOS . With some little changes it can be used and under other distros.We will present also some simple trick on how to monitor multi services (domain,IP,host,etc) in a single output page.It is not different with polling all the packets either from udp or tcp tunnel and let the sequence or arrangemeng followed to simple network management protocol-SNMP

I hope that this doc is easy for every reader to follow the howtos of deploying the MRTG server.

Good Luck to all Parekoy!

Objectives:
1)Basically we need to setup a network monitoring software
2)To use an Opensource MRTG which is durable and tested
3) To be able to configure and setup MRTG
4)To Monitor multiple traffic activities of different servers running in the productions


Requirements:

Some of the nescessary files need to create a graphical multi router traffic analysis are the following
SNMP-protocol
GD-graphics
LibPNG -libraries to *.png format
Zlib- some addons to graphics
Wget- uploading/downloading programs

Methodology:

Installation of SNMP server

Initially we install the packets needed for SNMP. Yum makes this job a lot easier.Next we make snmpd service to start automatically for the runlevels we want.
# yum install net-snmp-utils net-snmp

And we start the server.

# chkconfig --level 345 snmp

We can see that it is running in port 199.

# service snmpd start

# netstat -natv | grep ':199'

tcp 0 0 127.0.0.1:199 0.0.0.0:* LISTEN


SNMP Configuration
We run ‘snmpwalk’ which creates a “tree” of information for our network.
If you see an output like this one you may proceed with the MRTG installation. Else you should make some configuration first.

# snmpwalk -v 1 -c public localhost IP-MIB::ipAdEntIfIndex

ip.ipAddrTable.ipAddrEntry.ipAdEntIfIndex.127.0.0.1 = 1

ip.ipAddrTable.ipAddrEntry.ipAdEntIfIndex.192.168.0.3 = 2


We keep a backup of snmpd.conf just in case anything goes wrong

# cp /etc/snmp/snmpd.conf /etc/snmp/snmpd.conf.origina

We open it

# nano /etc/snmp/snmpd.conf

find and change this line

com2sec notConfigUser default public

replace by

com2sec local localhost public

com2sec mynetwork 10.0.0.0/8 public

where 10.0.0.0/8 we put what our network is
find and change those lines
group notConfigGroup v1 notConfigUser

group notConfigGroup v2c notConfigUser

and replace by

group MyRWGroup v1 local

group MyRWGroup v2c local

group MyRWGroup usm local

group MyROGroup v1 mynetwork

group MyROGroup v2c mynetwork

group MyROGroup usm mynetwor

find and change this lines
view systemview included .1.3.6.1.2.1.1

view systemview included .1.3.6.1.2.1.25.1

and replace with this one

view all included .1 8

find and change this line

access notConfigGroup "" any noauth exact systemview none none

with those lines below

access MyROGroup "" any noauth exact all none none

access MyRWGroup "" any noauth exact all all none


Finally,find and change those lines
syslocation Unknown (edit /etc/snmp/snmpd.conf)

syscontact Root (configure /etc/snmp/snmp.local.conf)


with this one (but you can change those with your own settings)

syslocation Linux, CentOS

syscontact Your_name root@localhost

Running SNMP service

We restart the server to take affect of the notices

# service snmpd restart

And we run again

# snmpwalk -v 1 -c public localhost IP-MIB::ipAdEntIfIndex

Now we should see something like that

IP-MIB::ipAdEntIfIndex.10.X.Y.Z = INTEGER: 2

IP-MIB::ipAdEntIfIndex.127.0.0.1 = INTEGER: 1

Where 10.X.Y.Z is your ip address.

Installing MRTG application

Using yum...

# yum install mrtg

Configuration of our MRTG

We create the folder in which our graphs and html pages will be kept

# mkdir /var/www/html/mrtg/

And we run ‘cfgmaker’ for the configuration file to be created.

# cfgmaker --global "workdir: /var/www/html/mrtg" -ifref=ip --output /etc/mrtg/mrtg.cfg --global 'options[_]: growright,bits' public@localhost

Here you should pay notice to --output /etc/mrtg/mrtg.cfg as long as to public@localhost. With this command we tell MRTG to create a configuration file with the name ‘mrtg.cfg’ for the traffic of our computer (localhost). Instead of localhost you may put the address of any computer you may monitor as long as it runs SNMP.

Next we create our default index page

# indexmaker --output=/var/www/html/mrtg/index.html /etc/mrtg/mrtg.cfg

Configuring Apache To Work With MRTG

MRTG is useful because it can provide a graphical representation of your server's performance statistics via a Web browser.With newer versions of Fedora, Apache automatically reads the add-on files in the /etc/httpd/conf.d/ directory. With Fedora Core 1, you have to specifically configure the Apache configuration file /etc/httpd/conf/httpd.conf to find it. You can do this yourself by inserting this line at the very bottom of the main Apache configuration file before restarting Apache for the change to take effect. With Fedora Core, MRTG creates an add-on configuration file named /etc/httpd/conf.d/mrtg.conf that includes all the necessary Apache commands for MRTG to work.

[root@localhost]# include " /etc/httpd/conf.d/mrtg.cfg

Some configuration may need to be done, because by default MRTG accepts Web requests from the Linux console only. You can add your home network to the file by inserting the network on the Allow from line, or you can allow universal access by commenting out that line along with the Deny from line. This example adds access from the 192.168.1.0 network.

#Alias /mrtg /var/www/mrtg

Order deny,allow
Deny from all
Allow from localhost 10.36.128.0/32

If you want to access MRTG from the Internet, then you'll have to comment out the Deny statement and allow from all IP addresses:

#Alias /mrtg /var/www/mrtg

Order deny,allow
Deny from all

Note:**
Remember to restart Apache once you have made these modifications in order for these changes to take effect.

Compling MRTG configurations

We run the following command

# mrtg /etc/mrtg/mrtg.cfg

ERROR: Mrtg will most likely not work properly when the environmentvariable LANG is set to UTF-8. Please run mrtg in an environmentwhere this is not the case. Try the following command to start:

env LANG=C /usr/bin/mrtg /etc/mrtg/mrtg.cfg


In case you get an error like this;you have to run the above command more than once till it runs without any error. This is normal.
# env LANG=C /usr/bin/mrtg /etc/mrtg/mrtg.cfg

23-02-2007 17:28:53, Rateup WARNING: /usr/bin/rateup Can't remove localhost_2.old updating log file

# env LANG=C /usr/bin/mrtg /etc/mrtg/mrtg.cfg

Finally we open our browser and type

http://localhost/mrtg


Multiple MRTG clients

The Fedora Core MRTG installation process creates a cron file named /etc/cron.d/mrtg. This file tells the cron daemon to run MRTG using the /etc/mrtg/mrtg.cfg file every five minutes to poll your network devices. You can configure MRTG to poll multiple devices, each with a separate configuration file. Here's how:

1) Create a new configuration file using the steps from the previous section; choose a filename that is not mrtg.cfg.

2) Add a new MRTG line in /etc/cron.d/mrtg for each new configuration file you create.

[root@localhost]# vi /etc/cron.d /mrtg

0-59/5 **** root env LANG=C /usr/bin/mrtg/  etc/mrtg/server1.cfg
0-59/5 **** root env LANG=C /usr/bin/mrtg/ etc/mrtg/server2.cfg
0-59/5 **** root env LANG=C /usr/bin/mrtg/ etc/mrtg/server3.cfg

3) Run the indexmaker command, and include all of your /etc/mrtg configuration files, to regenerate your Web index page.

[root@localhost]# indexmaker --output=/var/www/mrtg/index.html
/etc/mrtg/server1.cfg /etc/mrtg/server2.cfg /etc/mrtg/server3.cfg

4) Other versions of Linux keep their MRTG cron entries inside the /etc/crontab file. Edit this file using the same syntax as the Fedora /etc/cron.d/mrtg file, and then restart the cron daemon to re-read the configuration:

[root@localhost]# service crond restart

You could also create a script with the /usr/bin/mrtg /etc/mrtg/device.cfg entries in it and make cron run it every five minutes. This way you can just edit the script each time you add a device without having to restart cron.

After the modification in our config, let's start snmp and apache

[root@localhost]# service snmpd restart

[root@localhost]# service httpd restart

Again, to see the multiple clients of our MRTG, we open our browser and type

http://localhost/mrtg

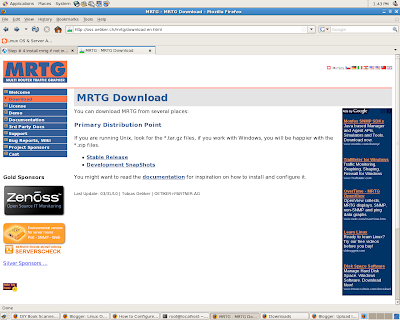

Detail(1) MRTG download site

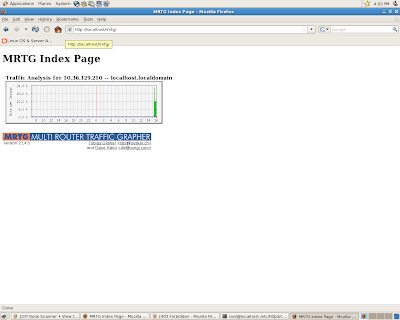

Detail(2)MRTG Main page

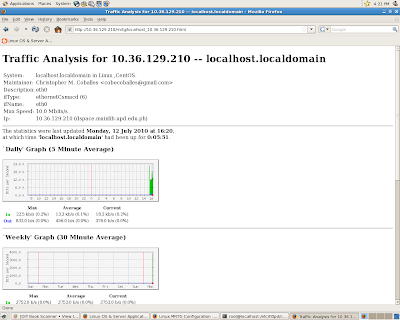

Detail(3)MRTG Weekly Traffic Analysis

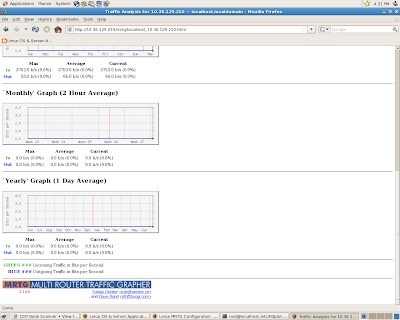

Detail(4)MRTG Annual Traffic Analysis


Remarks:



Conclusions:
