Mysql Workbench Setup (Fedora 64 bit)


MySQL Workbench is a GUI database design tool that integrates SQL development, administration, database design, creation and maintenance into a single development environment for the database system of MySQL.It is a C/C++ program ,running in a multi-platform OS . The Software is now currently owned by Oracle yet most of its bundles are still available freely in the Open-source community.For further references please go to this wiki:

Hey, I guess am seriously focusing myself into an information system of business data processing.Just recently when I got involved on using SQL and the combined front end software(PHP,PERL,Python,Gambas and etc.).But for now, this workbench is for sure a great help to simplify databasing scheme.

Anyway, sooner or later l'll stick to some of my own coding applications from basic ,average and might as well into wizardness-huh?

Then let's go coding...

Here are some important packages:
python-paramiko.noarch 0:1.7.6-2.fc14

For complete requirements(cut and paste then try it with "yum"):
mysql++-devel.x86_64 0:3.1.0-2.fc14
mysql-bench.x86_64 0:5.1.51-2.fc14
mysql-connector-c++-devel.x86_64 0:1.1.0-0.2.bzr888.fc14
mysql-devel.x86_64 0:5.1.51-2.fc14
mysql-embedded-devel.x86_64 0:5.1.51-2.fc14
mysql-server.x86_64 0:5.1.51-2.fc14
mysql-test.x86_64 0:5.1.51-2.fc14
mysql-workbench-gpl.x86_64 0:5.2.34-1fc14
mysqltuner.noarch 0:1.1.1-1.fc13
mysqludf_xql.x86_64 0:1.0.0-1.fc13


1*)Our objective is to simplify Mysql Database application with the aid of its bundled tools-Mysql Workbench


root@localhost# yum install libzip

root@localhost# yum install perpect

root@localhost# yum install python-paramiko

root@localhost# yum install mysql mysql-server

Install MySql source code
root@localhost# groupadd mysql
root@localhost# useradd -r -g mysql mysql
root@localhost# cd /usr/local
root@localhost# tar zxvf /path/to/mysql-VERSION-OS.tar.gz
root@localhost# ln -s full-path-to-mysql-VERSION-OS mysql
root@localhost# cd mysql
root@localhost# chown -R mysql .
root@localhost# chgrp -R mysql .
root@localhost# scripts/mysql_install_db --user=mysql
root@localhost# chown -R root .
root@localhost# chown -R mysql data

You can have the Mysql configuration optional
root@localhost# cp support-files/my-medium.cnf /etc/my.cnf
root@localhost# bin/mysqld_safe --user=mysql &
root@localhots# cp support-files/mysql.server /etc/init.d/mysql.server

Then check if MyQL is installed:
Note: What we're talking here is a default username and password just to check
mysql is running.You should see where MySql is,and start running its daemon, so here is how to do it..

root@localhost# whereis mysql
root@localhost# cd /usr/local/mysql
root@localhost# ./bin/mysqld_safe &

Open another tab and then go to the same path "/usr/local/mysql/" take note "./bin/mysql" (the dot for mysql/bin).Or to have a soft link to the executable path "/usr/bin/mysql)-that could be a better idea know bro.
root@localhost# ./mysql
root@localhost# ln -s /usr/local/bin/mysql /usr/bin/mysql
root@localhots# mysql

Then proceed to Mysql Workbench
root@localhost# rpm -ivh mysql-workbench-gpl-5.2.34-1fc14.x86_64.rpm

Then goto File->Programming -> Mysql Workbench

Detail(1) Go to the Mysql Download Area

Detail(2) Choose mirror site for download

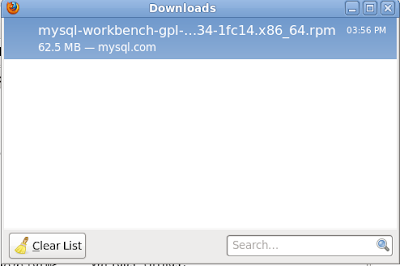

Detail(3) Downloaded myql work bench

Detail(4) CLI: rpm -ivh mysql-workbench

Detail(5) Run your first installed Mysql-Work bench

Detail (6) Open Mysql work bench connection

Detail(7) A new connection is established

Detail(8) Open Query

Detail(9) Add new table


For some troubles that might occur

1) Permission Denied
Trouble: chown: cannot access `./.gvfs': Permission denied
Solution: chown -R $USERNAME:$USERNAME $HOME

My SQL saga is just beginning..
